Permanent Outdoor LightsC5205 Permanent Outdoor Lights
Evaluate this product as part of a complete permanent outdoor lighting system, branded range or OEM/ODM program.
Product information

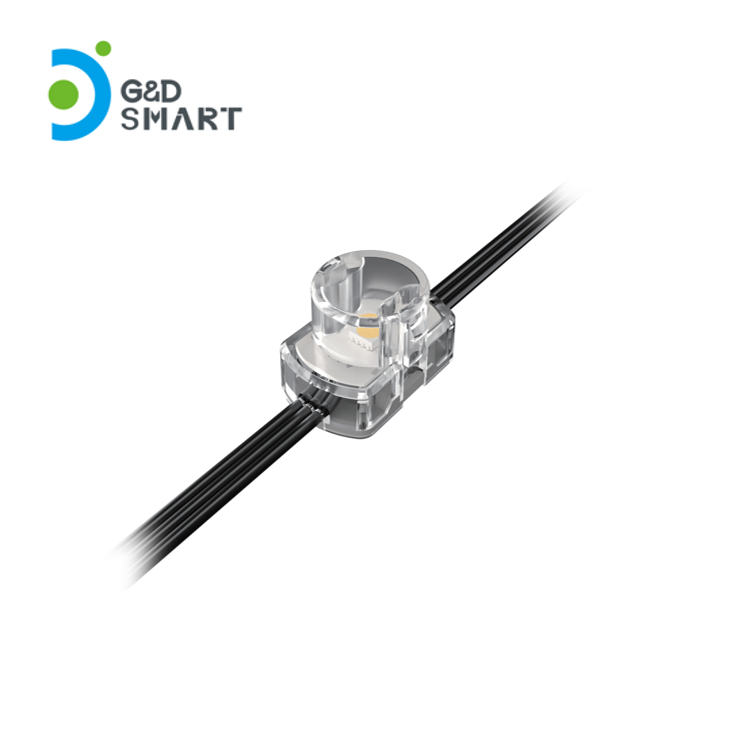

C5205 is a fixture platform for professional permanent roofline lighting. Review its published electrical options together with the mounting profile, matched GC08 voltage, wiring layout and control firmware before selecting a sample configuration.
Key Specifications
- Voltage: DC24V
- Power: 0.96W
- Light source: 5050 RGBW, RGBW 3000K
- Control: SPI
- Spacing: 9 inch
- Standard string: 5 pcs
- Dimensions: Ø20 × H17.6 mm
- Shell: 945U PC, transparent
- Beam angle: 120°
- IP rating: IP67
- Operating temperature: -20 to 60°C
- Lifespan: ≥50,000 h
- Flame retardant: UL94-V0
- Certification reference: CUL + FCC. Confirm model-specific documentation for the supplied configuration.
- Wire: UL 2468 20AWG
System Compatibility
C5205 is a 24V roofline light matched to the GC08 24V control-box platform. Choose 350W or 600W capacity according to the project load and branch layout.
- GC08 24V control-box platform — 350W or 600W according to project design
- C5205 Installation Profile A
- SH-M12A Extension Cable
- SFQ0401 Signal Amplifier
UL Certification Evidence
The supplied UL certificate includes C5205-X within its listed low-voltage luminaire model scope. The certificate uses “X” as a commercial-code suffix. Confirm the exact supplied revision, product marking and project documentation before final approval.
Record: UL-US-2591321-0 · Report E549391-20251104 · Issued 2025-11-06.
View original UL certificate · Certification & Compliance

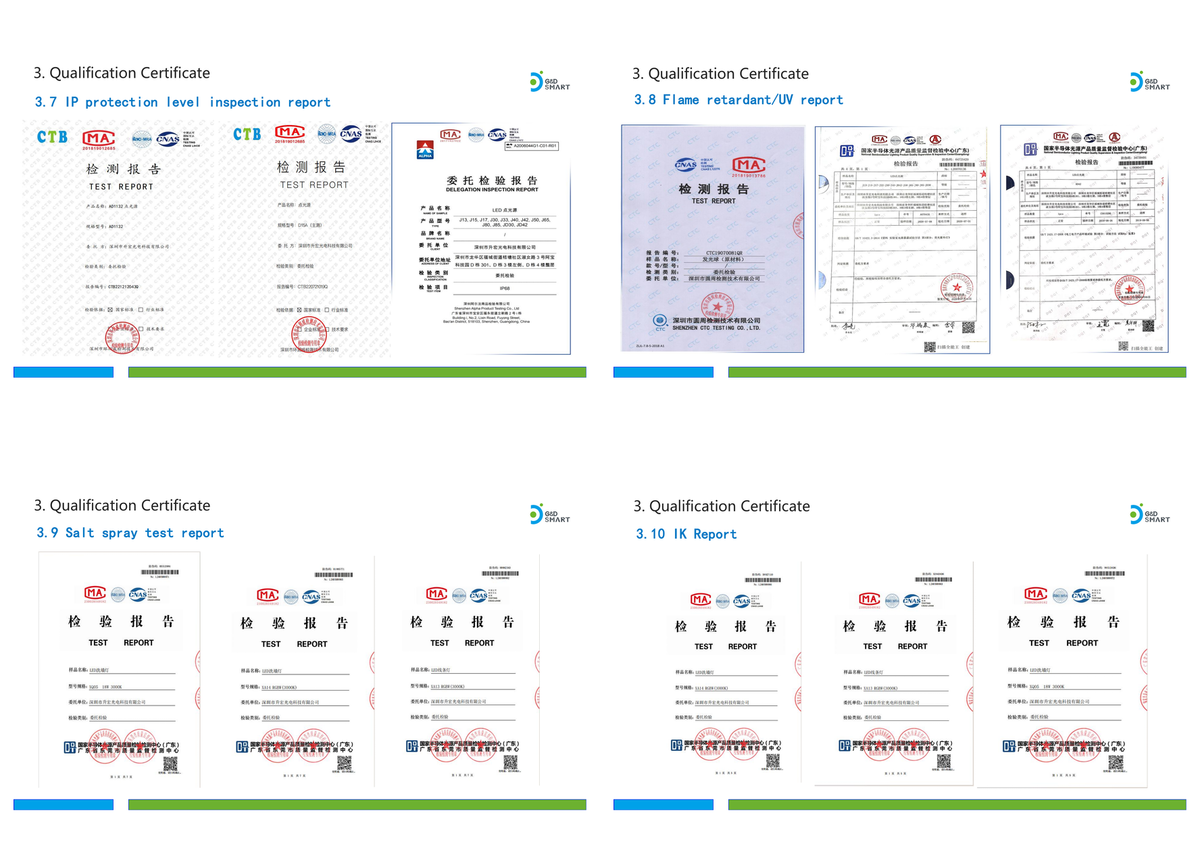

Reliability Evidence
Supporting reliability-test references include IP protection, UV/flame-retardant performance, salt spray and mechanical impact testing. Request the model-specific report package for the configuration being evaluated.
Documents for the supplied configuration
The published values summarize the current product specification. Confirm the approved product revision, wiring drawing and applicable model-specific certification documents for the supplied configuration. Component ratings and certificates should be reviewed within the final system design.
Review certification evidence · Request the model document package
Published model specifications
Catalog references for evaluation. Confirm the current model specification and approved revision before ordering. Empty fields have not been confirmed.
| Model number | C5205 |
|---|---|
| Voltage options (V DC) | 24 |
| Published power / capacity (W) | 0.96 |
| LED package / light source | 5050 RGBW, RGBW 3000K |
| Color channels | RGBW (3000K white) |
| Control protocol | SPI |
| Light spacing | 9 inch |
| Wire gauge / construction | UL 2468 20AWG |
| Connector family | SH-M12A; confirm pinout and cable rating for the approved configuration |
| Matching mounting profile | C5205 Installation Profile A |
| Controller / control box | GC08; match voltage and confirm firmware / output configuration |
| App / firmware route | Confirm the selected control platform and firmware revision |
| Published IP rating | IP67 |
| Operating temperature | -20 to 60°C |
| Dimensions | Ø20 × H17.6 mm |
| Beam angle | 120° |
| Housing / profile material | 945U PC, transparent |
| Certification verification status | Supplied UL certificate references C5205-X; confirm the supplied voltage/revision, UL mark and current certification record. This does not establish complete-system certification. |
| Certified model / revision | C5205-X (certificate designation; exact supplied configuration to confirm) |
| Certification standard | UL 2108 (US); CSA C22.2 No. 250.2 (Canada) |
| Certification file / report number | E549391-20251104; UL-US-2591321-0 / UL-CA-2566862-0; issued 2025-11-06; holder Shenzhen SHLED Technology Co., Ltd. |
| Verified wet / damp / dry rating | Confirm the project location rating against the model-specific listing, markings and installation instructions. IP rating alone does not establish wet/damp suitability. |
| Verified Class 2 status | Confirm Class 2 status against the selected power source, output architecture and model-specific documentation. |
| OEM / ODM scope | Discuss fixture or enclosure branding, product revisions and the complete roofline-system bill of materials. Feasibility, minimum quantities and validation scope are confirmed in the quotation. |
Specification source
Current published G&D SMART product reference. Confirm the current model-specific datasheet and approved revision before purchase.
Reference documents
Product catalog, credentials & technical documents
Plan the complete configuration
- Fixture or component format, mounting and intended application.
- Supply voltage, load and compatible control equipment where applicable.
- Tracks, connectors, cable and installation accessories.
- Current model-specific documentation and commercial terms.
