Tracks & MountingC5205 Installation Profile A
Evaluate this product as part of a complete permanent outdoor lighting system, branded range or OEM/ODM program.
Product information
C5205 is a model-matched roofline mounting profile. Confirm the fixture opening, finished dimensions, fixing method and maintenance access against an approved drawing before installation.
Specifications
- Material: AL6063 aluminum
- Lengths: 40, 45 and 60 inch
- Finishes: Black RAL9017, White RAL9016 and aluminum color

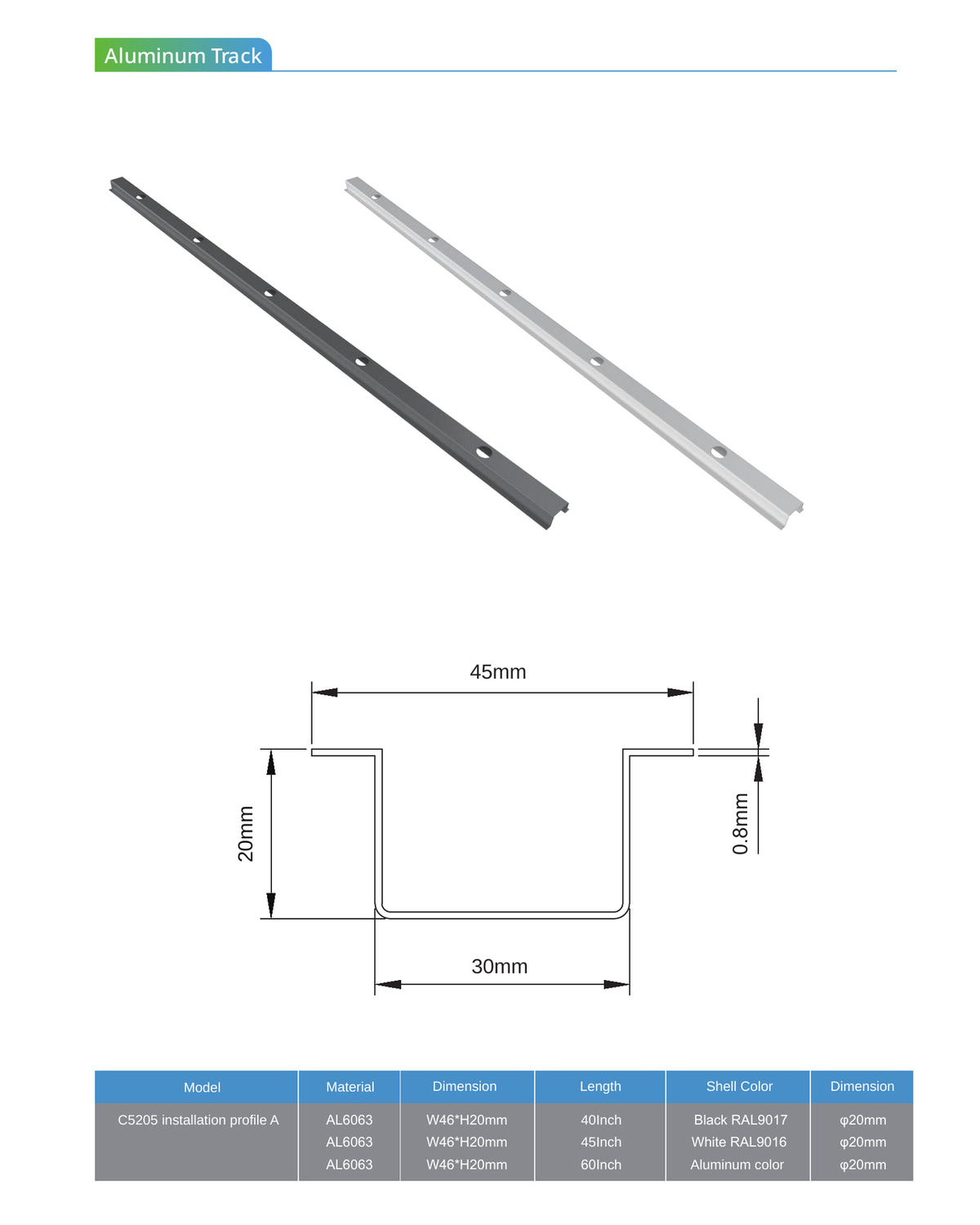

- Section dimension: W46 × H20 mm
- Lamp opening: Ø20 mm
System Match
Designed for C5205 Permanent Outdoor Lights.
Documents for the supplied configuration
The published values summarize the current product specification. Confirm the approved product revision, wiring drawing and applicable model-specific certification documents for the supplied configuration. Component ratings and certificates should be reviewed within the final system design.
Review certification evidence · Request the model document package
Published model specifications
Catalog references for evaluation. Confirm the current model specification and approved revision before ordering. Empty fields have not been confirmed.
| Model number | C5205 |
|---|---|
| Housing / profile material | AL6063 aluminum |
| Certification verification status | Confirm the model-specific certification record, product markings and scope for the supplied configuration before approval. |
| Verified wet / damp / dry rating | Confirm the project location rating against the model-specific listing, markings and installation instructions. IP rating alone does not establish wet/damp suitability. |
| Verified Class 2 status | Confirm Class 2 status against the selected power source, output architecture and model-specific documentation. |
| OEM / ODM scope | Discuss cut length, finish, tooling and model-matched mounting drawing. |
Specification source
Current published G&D SMART product reference. Confirm the current model-specific datasheet and approved revision before purchase.
Reference documents
Product catalog, credentials & technical documents
Plan the complete configuration
- Fixture or component format, mounting and intended application.
- Supply voltage, load and compatible control equipment where applicable.
- Tracks, connectors, cable and installation accessories.
- Current model-specific documentation and commercial terms.
