Permanent Outdoor LightsC5204 Permanent Outdoor Lights
Evaluate this product as part of a complete permanent outdoor lighting system, branded range or OEM/ODM program.
Product information
C5204 is a fixture platform for professional permanent roofline lighting. Review its published electrical options together with the mounting profile, matched GC08 voltage, wiring layout and control firmware before selecting a sample configuration.
Models
- C5204A: DC12V, 0.86W, 5050 RGBW, RGBW 3000K, SPI.
- C5204B: DC24V, 0.96W, 5050 RGBW, RGBW 3000K, SPI.
- C5204C: DC36V, 0.96W, 5050 RGBW, RGBW 3000K, SPI.
Key Specifications
- Dimensions: Ø30 × H16 mm
- Shell: 945U PC, transparent
- Beam angle: 120°
- IP rating: IP67
- Operating temperature: -20 to 60°C
- Lifespan: ≥50,000 h
- Flame retardant: UL94-V0
- Certification reference: CUL + FCC. Confirm model-specific documentation for the supplied configuration.
- Wire: UL 2468 20AWG
- Spacing options: 4, 6, 9 and 12 inch, plus single-piece format
System Compatibility
C5204 is designed to work with the GC08 control-box platform. Select the GC08 voltage to match the lamp version, then choose 350W or 600W capacity according to the project load and branch layout.
- GC08 control-box platform — 12V / 24V / 36V, 350W or 600W according to project design
- C5204 Installation Profile A
- C5204 Installation Profile B
- SH-M12A Extension Cable
- SFQ0401 Signal Amplifier
Compare 12V, 24V and 36V system solutions

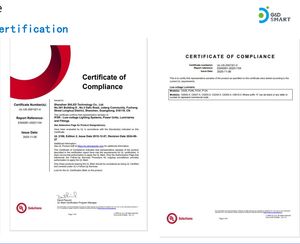

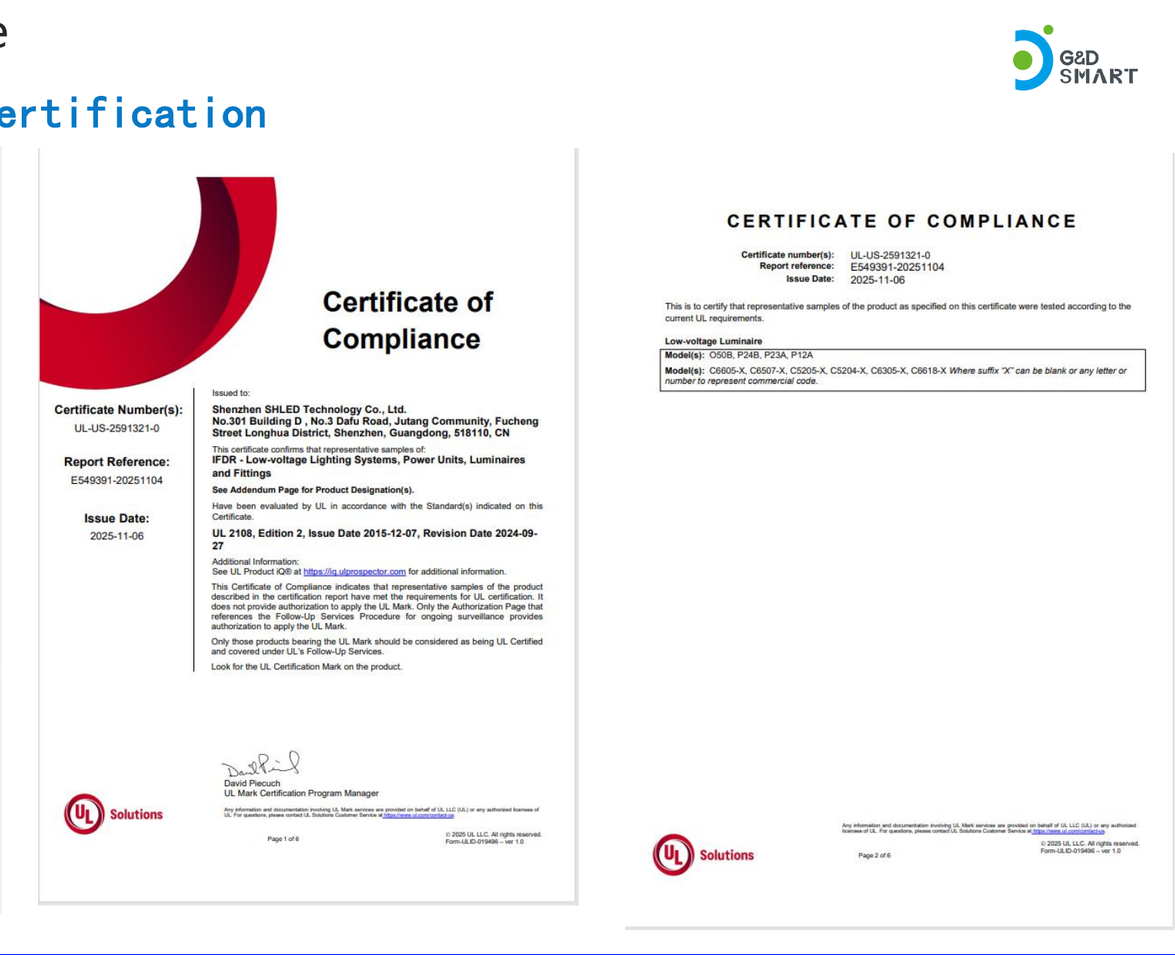

UL Certification Evidence
The supplied UL certificate includes C5204-X within its listed low-voltage luminaire model scope. The certificate uses “X” as a commercial-code suffix. Confirm the exact supplied revision, voltage, product marking and project documentation before final approval.
Record: UL-US-2591321-0 · Report E549391-20251104 · Issued 2025-11-06.
View original UL certificate · Certification & Compliance

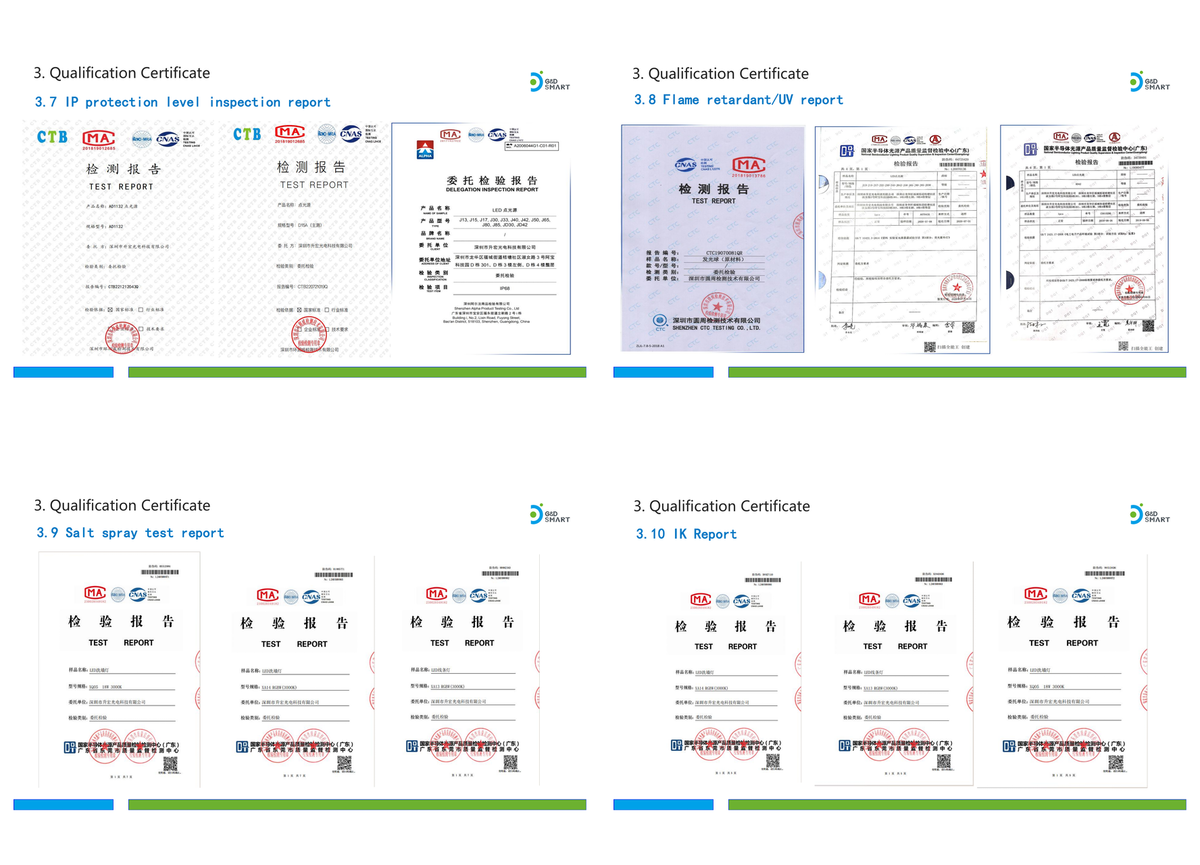

Reliability Evidence
G&D SMART also maintains supporting reliability-test references covering areas such as IP protection, UV/flame-retardant performance, salt spray and mechanical impact. Request the model-specific report package for the configuration being evaluated.
Documents for the supplied configuration
The published values summarize the current product specification. Confirm the approved product revision, wiring drawing and applicable model-specific certification documents for the supplied configuration. Component ratings and certificates should be reviewed within the final system design.
Review certification evidence · Request the model document package
Published model specifications
Catalog references for evaluation. Confirm the current model specification and approved revision before ordering. Empty fields have not been confirmed.
| Model number | C5204 |
|---|---|
| Voltage options (V DC) | 12 / 24 / 36 |
| Published power / capacity (W) | 0.86 / 0.96 |
| Wire gauge / construction | UL 2468 20AWG |
| Connector family | SH-M12A; confirm pinout and cable rating for the approved configuration |
| Matching mounting profile | C5204 Installation Profile A / B |
| Controller / control box | GC08; match voltage and confirm firmware / output configuration |
| App / firmware route | Confirm the selected control platform and firmware revision |
| Published IP rating | IP67 |
| Operating temperature | -20 to 60°C |
| Dimensions | Ø30 × H16 mm |
| Beam angle | 120° |
| Housing / profile material | 945U PC, transparent |
| Certification verification status | Supplied UL certificate references C5204-X; confirm the supplied voltage/revision, UL mark and current certification record. This does not establish complete-system certification. |
| Certified model / revision | C5204-X (certificate designation; exact supplied configuration to confirm) |
| Certification standard | UL 2108 (US); CSA C22.2 No. 250.2 (Canada) |
| Certification file / report number | E549391-20251104; UL-US-2591321-0 / UL-CA-2566862-0; issued 2025-11-06; holder Shenzhen SHLED Technology Co., Ltd. |
| Verified wet / damp / dry rating | Confirm the project location rating against the model-specific listing, markings and installation instructions. IP rating alone does not establish wet/damp suitability. |
| Verified Class 2 status | Confirm Class 2 status against the selected power source, output architecture and model-specific documentation. |
| OEM / ODM scope | Discuss fixture or enclosure branding, product revisions and the complete roofline-system bill of materials. Feasibility, minimum quantities and validation scope are confirmed in the quotation. |
Model and configuration notes
C5204A: 12V, 0.86W per fixture; C5204B: 24V, 0.96W; C5204C: 36V, 0.96W. Published platform mapping; confirm the supplied revision.
Specification source
Current published G&D SMART product reference. Confirm the current model-specific datasheet and approved revision before purchase.
Reference documents
Product catalog, credentials & technical documents
Plan the complete configuration
- Fixture or component format, mounting and intended application.
- Supply voltage, load and compatible control equipment where applicable.
- Tracks, connectors, cable and installation accessories.
- Current model-specific documentation and commercial terms.
