Cables & ConnectorsSH-M12A 3-Pin Connector Pigtails
Evaluate this product as part of a complete permanent outdoor lighting system, branded range or OEM/ODM program.
Product information
SH-M12A 3-Pin Connector Pigtails supports the cable and branch layout of a professional roofline system. Confirm connector pinout, conductor size, cable rating and permitted load for the exact fixture and control-box revision.
Specifications

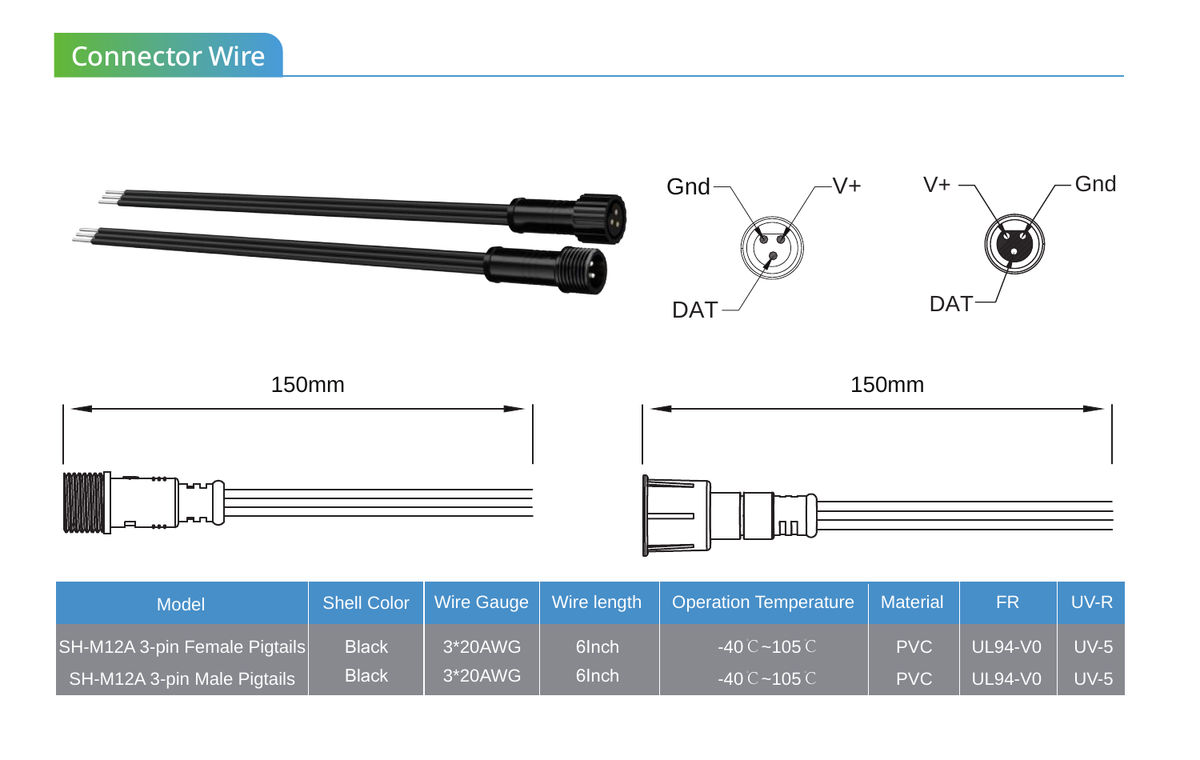

- Connector: SH-M12A 3-pin
- Male and female pigtail versions
- Color: Black
- Wire length: 6 inch
- Wire gauge: 3 × 20AWG
- Operating temperature: -40 to 105°C
- Material: PVC
- Flame retardant: UL94-V0
- UV resistance: UV-5
System Match
Standard connector family used with current C5204, C5205 and P23A roofline configurations.
Documents for the supplied configuration
The published values summarize the current product specification. Confirm the approved product revision, wiring drawing and applicable model-specific certification documents for the supplied configuration. Component ratings and certificates should be reviewed within the final system design.
Review certification evidence · Request the model document package
Published model specifications
Catalog references for evaluation. Confirm the current model specification and approved revision before ordering. Empty fields have not been confirmed.
| Model number | SH-M12A |
|---|---|
| Wire gauge / construction | 3 × 20AWG |
| Connector family | SH-M12A 3-pin |
| Operating temperature | -40 to 105°C |
| Housing / profile material | PVC |
| Certification verification status | Confirm the model-specific certification record, product markings and scope for the supplied configuration before approval. |
| Verified wet / damp / dry rating | Confirm the project location rating against the model-specific listing, markings and installation instructions. IP rating alone does not establish wet/damp suitability. |
| Verified Class 2 status | Confirm Class 2 status against the selected power source, output architecture and model-specific documentation. |
Specification source
Current published G&D SMART product reference. Confirm the current model-specific datasheet and approved revision before purchase.
